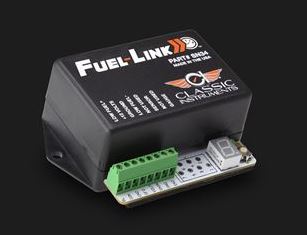

Inspired by our Zeus Speedometer Technology, this device corrects fuel ohm range mismatch and erratic pointer movement due to fuel slosh. There is no need to remove the fuel tank, sending unit, or gauge to make a mismatched set work correctly. The unit installs in line between the fuel gauge and fuel sender to correct the mismatch. Several other features include:
- Push-button programmability and LED readout for quick set-up
- Signal dampening for a steady fuel pointer
- Easy electrical connectivity with labeled wire terminals
- Compact size, 3" x 2" x 1.5", with mounting holes for under-dash installation
- Optional low fuel light, triggered at 1/8 of a tank
The unit is preset to work with eight common fuel sender resistance curves as listed
below, or calibrate a custom curve.
-240 – 33 ohm.........Standard After-market
-0 – 90 ohm ............GM Type ’66 and later
-0 – 30 ohm ............GM Type ’64 and earlier
-16 – 158 ohm .........Ford Type ’87 and later
-75 – 10 ohm ...........Ford Type ’86 and earlier
-90 – 0 ohm ............Toyota & Nissan ’85 and later
-40 – 250 ohm ........Late model GM
-10 – 180 ohm ........VDO
-0 – 350 ohm ..........Custom ohm range
|
